FRACARRO AFI112T Ενισχυτής γραμμής

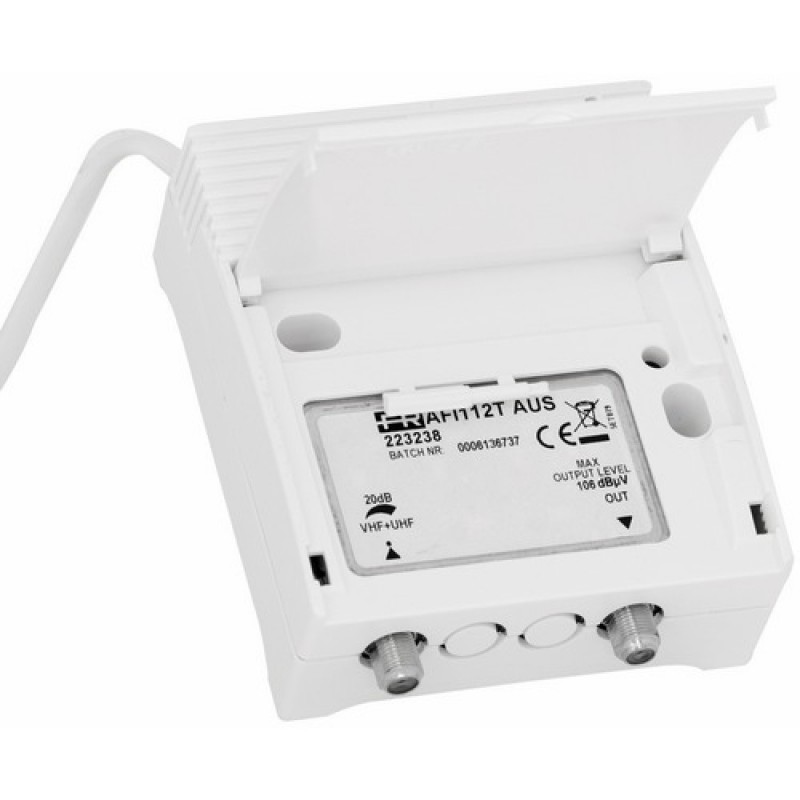

Internal antenna amplifier AFI112T Fracarro
High-quality branded amplifier Fracarro.

MAIN FEATURES

• Integrated switching power supply, high efficiency and low consumption
• Screwdriver included for gain and tilt adjustment
• Adjustments housed under the flap, openable or completely detachable
• Internal buttonholes for wall mounting, not visible from the outside, to create exposed installations
• Low noise figure
• Fully shielded
• Quick and easy installation
• Green LED for signaling the ignition

CHARACTER

• Code 223230
• Inputs no. 1 Band III + IV + V
• Bandwidth 47-862 MHz
• Gain 20 dB
• Gain adjustment 15 dB
• Figure noise 4 dB
• Maximum output level 108 dBμV
• Maximum output level Only DTT signals 115 dBuV
• Power supply 220-240V, 50-60Hz
• Insulation class II
• Max power absorbed 1,8W
• Female F-Type Connectors
• Operating temperature -10 to +55 ° C
• IP20 protection
