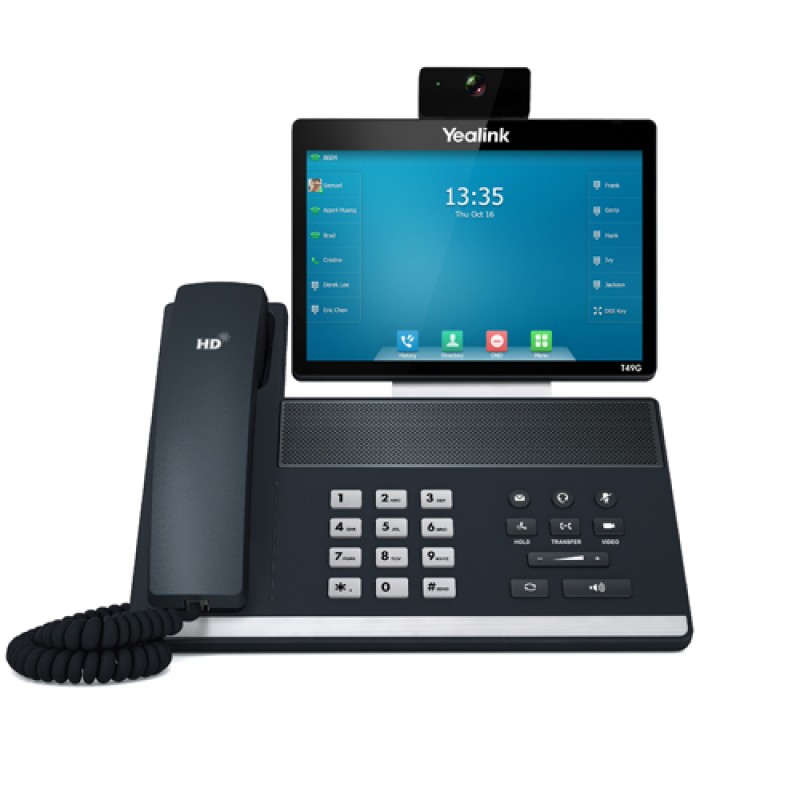

Yealink SIP VP-T49G
HD touch screen video phone
Το Yealink VP-T49G HD είναι ένα Touch Screen capable IP τηλέφωνο με διευρημένες δυνατότητες που απευθύνεται όχι μόνο σε ηγετικά στελέχη αλλά και σε απομακρυνσμένους χρήστες.
Το χαρακτηρίζουν η ισορροπία μεταξύ απλότητας και κομψότητας. Η χρήση του σαν Stand Alone Video Conference EndPoint επιτρέπει μέχρι και τριμερή συνομιλία με παράλληλη Video διάσκεψη αλλά και έως 5 άτομα συνδιάσκεψη.
Φυσικά δεν θα μπορούσαν να απουσιάζουν τεχνολογίες που υπάρχουν σε μικρότερα τηλέφωνα όπως HD Voice, 16 SIP λογαριασμοί, 29 One-Touch προγραμματιζόμενα πλήκτρα Gigabit δίκτυο κλπ.
Επίσης στα PLUS του θα μπορούσν να αναφερθούν το ενσωματωμένο WiFi με δυνατότητες 802,11 a/b/g/n, η οθόνη IPS LCD με ανάλυση 1280Χ800, η θύρα HDMI για σύνδεση εξωτερικών συσκευών ήχου και εικόνας, και embedded Bluetooth EDR 4.0 για σύνδεση σχεδόν με οποιοδήποτε Bluetooth Headset.
Yealink VP-T49G HD SIP Touch Screen Features & Benefits
8" 1280 x 800 capacitive (10 points) touch screen IPS LCD
Full-HD 1080p30 video call
2 mega-pixel HD camera with privacy shutter
Built-in Bluetooth 4.0+ EDR for headsets and pairing mobile devices
Built-in Wi-Fi (Dual-band:2.4GHz & 5GHz, 802.11a/b/g/n)
Standard HDMI output for connection to monitor
USB ports (2.0 compliant) for media and storage applications
16 SIP accounts
Three-way video conferencing
Five-way audio/video mixed conferencing
Audio Features
HD voice: HD handset, HD speaker
Audio codec: G.722, G.711 (A/µ), G.729AB, G.723,G.726, iLBC, Opus
DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
Full-duplex hands-free speakerphone with AEC
VAD, CNG, AEC, PLC, AJB, AGC
Video Features
1080p@30fps Full-HD Video call
Video codec: H.264 High Profile, H.264, H.263
2 mega-pixel Camera with privacy shutter
Horizontal field of view: 63.5°
Vertical field of view: 37°
Adjustable camera
Plug and Play
Display Features
8" 1280 x 800 capacitive touch screen IPS LCD
10 points multi-touch surface
Screensaver and Wallpaper
LED for call and message waiting indication
Intuitive user interface with icons and soft keys
National language selection
Caller ID with name, number and photo
Phone Features
16 VoIP accounts
Call hold, mute, DND
One-touch speed dial, hotline
Call forward, call waiting, call transfer
Group listening, emergency call
Redial, call return, auto answer
Direct IP call without SIP proxy
Ring tone selection/import/delete
Set date time manually or automatically
Dial plan, XML Browser, action URL/URI
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Three-way video conferencing
Five-way audio/video mixed conferencing
Standard HDMI output for connection to monitor
USB ports (2.0 compliant) for media and storage applications
USB ports (3.0 compliant) for extending camera with USB3.0 cable
Notification Center and Control Center
Onscreen keyboard
IP-PBX Features
Busy Lamp Field (BLF)
Bridged Line Appearance (BLA)
Anonymous call, anonymous call rejection
Remote office, hot desking
Message Waiting Indicator (MWI)
Voice mail, call park, call pickup
Intercom, paging, music on hold
Call completion, call recording
Directory Features
Loal phonebook up to 1000 entries
Black list
XML/LDAP remote phonebook
Intelligent search method
Phonebook search/import/export
Call history: dialed/received/missed/forwarded
Feature Keys
29 one-touch DSS keys
8 feature keys: message,headset,mute,hold,transfer, video,redial,speakerphone
Volume control keys
Illuminated mute key
Illuminated headset key
Illuminated hands-free speakerphone key
Interface & Ports
Dual-port Gigabit Ethernet
Built-in Wi-Fi (2.4GHz & 5GHz, 802.11a/b/g/n)
Built-in Bluetooth 4.0+ EDR
USB port (2.0 compliant)
USB port (3.0 compliant, for camera/USB3.0 cable)
RJ9 (4P4C) handset port
RJ9 (4P4C) headset port
HDMI output port
Security lock port
Management Feature
Configuration: browser/phone/auto-provision
Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment
Auto-provision with PnP
Zero-sp-touch, TR-069
Phone lock for personal privacy protection
Reset to factory, reboot
Package tracing export, system log
Physical Features
Yealink power adapter: AC 100~240V input and DC 12V/2A output
Power consumption : 7.8 W-12 W
Dimension (W*D*H*T): 273mm*226mm*285mm*42 mm
Operating humidity: 10~95 percent
Operating temperature: -10~50°C
Networking & Security Features
IPv4/IPv6
SIP v1 (RFC2543), v2 (RFC3261)
Call server redundancy supported
NAT traversal: STUN mode
Proxy mode and peer-to-peer SIP link mode
IP assignment: static/DHCP/PPPoE HTTP/HTTPS web server
Time and date synchronization using SNTP
UDP/TCP/DNS-SRV(RFC 3263)
QoS: 802.1p/Q tagging (VLAN), Layer 3 ToSDSCP SRTP
Transport Layer Security (TLS)
HTTPS certificate manager
AES encryption for configuration file
Digest authentication using MD5/MD5-sess
OpenVPN, IEEE802.1X
