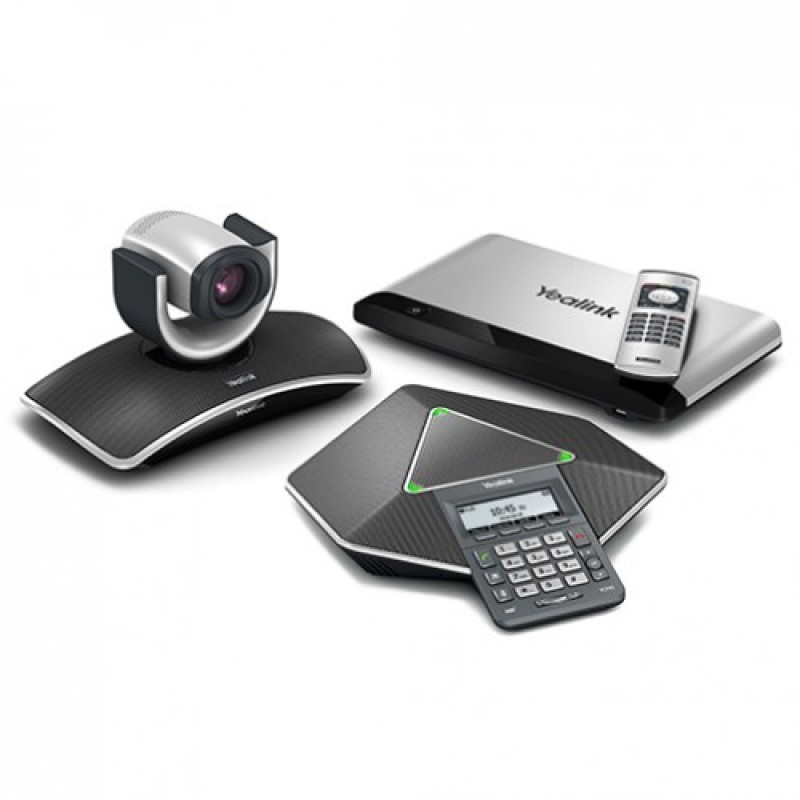

Yealink VC400
VOIP σύστημα τηλεδιάσκεψης
Το Yealink VC400 είναι η πιο πρόσφατη καινοτομία συστήματος τηλεδιάσκεψης σε υψηλή ανάλυση 1080P σχεδιασμένο ειδικά για μεγάλες επιχειρήσεις. Αυτό το σύστημα υποστηρίζει διπλό πρωτόκολλο H.323 και SIP για να εξασφαλίζει καλή συμβατότητα με τα τρέχοντα συστήματα βίντεο συνδιάσκεψης. Είναι εξοπλισμένο με μια κάμερα PTZ με οπτικό ζοομ 18X, έτσι ώστε οι χρήστες να μπορούν να απολαύσουν εικόνα 1080p. Υποστηρίζει επίσης εγγραφή USB και αναπαραγωγή. Με εξαιρετική ποιοτητα βίντεο και ηχητική εμπειρία, το VC400 είναι σίγουρα η καλύτερη επιλογή για διασκέψεις βίντεο για την επιχείρηση σας.
Features
4-site 1080P full-HD multipoint control unit (MCU)
18x optical zoom PTZ camera
Microphone arrays with 360 degree voice pickup
H.264 high profile, saving 50% bandwidth
Yealink intelligent firewall transversal
Video recording and playback
Dual displays and ‘focus’ feature
High compatibility and interoperability
1 year warranty
Specification
System Components
Codec VC400
VCS Phone VCP40
HD PTZ Camera VCC18
Remote control VCR10
Full-HD Camera
1920x1080 video resolution
Up to 18x optical zoom PTZ camera
Pan angle range: ±100°
Tilt angle range: ±30°
Up to 10 preset position
Beauty shot feature
MCU Processing Capacity
4-site 1080P/8-site 720P (Pending)
Additional 1-way audio call
Mixed protocols, codecs, bandwidth, resolution and frame rate
Video Resolution
Full HD 1080P at 30fps (1920x1080), from 1Mbps
720P (1280x720), from 521Kbps
W448P (768 x 448),WQVGA (400 x 240)
4CIF (704×576), CIF (352 x 288)
Video Standard and Network Suitability
H.264 High Profile, H.264, H.263
Bandwidth dynamic adaptive adjustment
Forward Error Correction (FEC), anti 8% video and 20% audio packet loss
Shared content and audio preference strategy
Bandwidth Auto adaptive/Protocol Auto adaptive/Audio/Video call Auto adaptive
Audio Features
3-microphone array
10ft/3-metre and 360 degree voice pickup
Optional 2 expansion microphones, enhancing voice pickup to 16ft/5-metres
Audio Codecs: G.722 (7KHz),G.722.1,G.722.1C,G.711 u/a
Audio technology: AEC, VAD, CNG, PLC, AJB, AGC
Call Features
Dual 1080P30: people + content sharing
Layout: full-screen, equal, one big /one small
Dual-screen display and ‘focus’ feature
Audio/Video recording and playback
Screenshots in USB
Sleep mode, DND
Call statistics
Auto answer, mute, and call waiting
Intelligent searching
Local directory: 1000 entries
Call History: all/missed/received/dialed
LDAP phonebook
National language selection
Standard Communication Protocol
H.323/SIP
Dual stream protocol: H.239/BFCP (SIP)
FECC: H.224/H.281
H.323 protocol suite:H.245,H.225,H.235,H.241
Support gatekeeper account and SIP account
Network and Security
TCP/IP (IPv4), DHCP/stastic IP
HTTP/HTTPS web server
SRTP/TLS, AES encryption
QoS: 802.1p/Q, Diff-serv
IEEE802.1X, LLDP-MED, VLAN
Time and date synchronization using SNTP
Built-in certificate
NAT and Firewall Transversal
NAT (manual/auto mode)
Yealink intelligent firewall transversal
OpenVPN
H.460
Configuration Management
Configuration via browser/display
Firmware upgrading, factory resetting
Export or import configuration
SNMP, audio/video and networkdiagnosis
Package tracing and system log exporting
Codec User Interface
1 x 10/100/1000MEthernet
2 x HDMI, 1 x DVI, 1 x VGA
1 x VCS phone port (RJ-45)
1 x Line-in (3.5mm), 1 x Line-out (3.5mm)
1 x power port, 2 x USB2.0 port
Others: 1 x power key, 1 x security lock slot,
1 x reset slot
Other Physical Features
External universal AC adapter: AC 100~240V input and DC 19V/3.42 Output
Power consumption (PSU): Idle＜2.8W, normal operating: 24W; MAX: 30W
Dimension (W*D*H):
Codec: 330mm*183mm*40mm;
Phone: 320mm*260m*52mm;
Camera: 282mm*152mm*159mm;
Remote control: 190mm*55mm*24mm
Operating humidity: 10~95%
Storage temperature: -10~50°C
Package Features
N.W/CTN: 7.9kg
G.W/CTN: 8.9kg
Carton Meas: 418mm*350mm*420mm
