Αντιεκρηκτική τηλεφωνική συσκευή

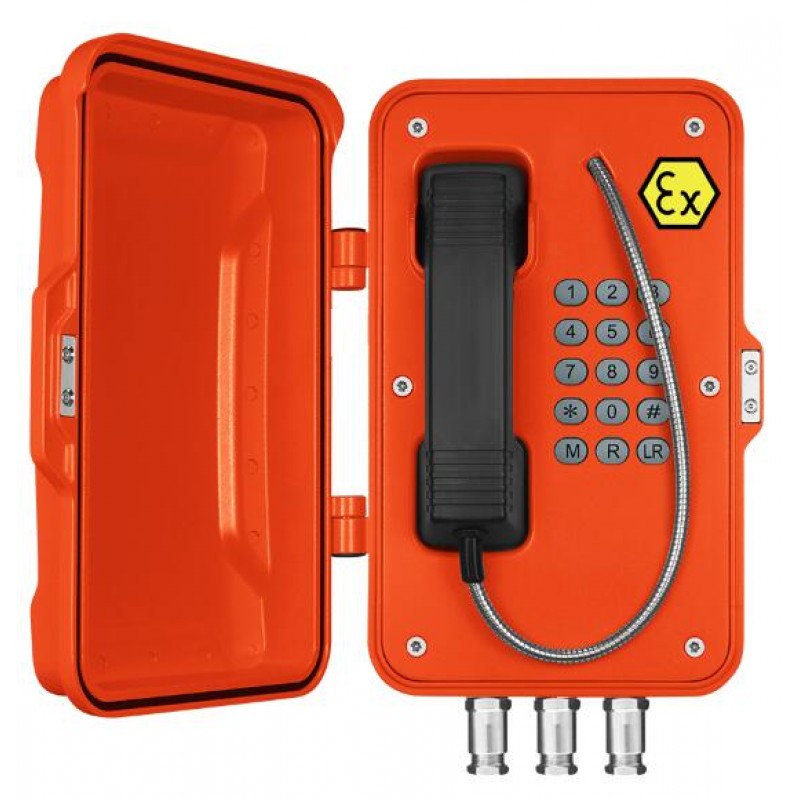

The Explosion Proof Telephone is designed for voice communication in the hostile environment where reliability, efficiency and safety are of prime importance. The telephone can handle the large temperature differences found outdoors, high humidity, exposure to sea water and dust,Corrosive atmosphere, Explosive gases & particles, as well as mechanical wear and tear, making it perfect for use as an emergency telephone.
- Standard Analogue
- Explosion Proof Telephone
- Weatherproof Telephone protection to IP66-IP67
- Full keypad
- Orange color
- with door cover
- Housed in a weatherproof cast aluminium enclosure
- Aluminium alloy die-casting body
- Vandal resistant handset and armored cord
- Inductive coupler fitted as standard for hard of hearing
- Wall mounting, simple installation
- Phone line powered (Analogue)
- Power-Over-Ethernet / PoE (SIP-VoIP)
- II 2G Ex e ib [ib] mb IIC T4 Gb
- III 2D Ex ib [ib] tb IIIC T135 °
- Zone 1 & Zone 2
- ATEX, CE, FCC, RoHS compliant
TECHNICAL SPECIFICATIONS
Explosion protection:
II 2G Ex e ib [ib] mb IIC T4 Gb
III 2D Ex ib [ib] tb IIIC T135 °
-40 °C ≤ Ta ≤ +60 °C/+40°C
Zone 1, 2, 22
Lightning / Transients
Protection to ITU-T k.21 enhanced levels
Casing Material Die cast aluminium, epoxy powder coated.
Color
Available in four colors:
Orange,Yellow, Red and Blue
Keypad
Weather resistant full Keypad, No.ofkeys
(TOTAL15KEYS):0-9,*,#,Redial,Mute,Last Number Redial
Handset
With Noise canceling microphone,for effective communication from noisy areas
(Armored SS cord stands up to rough treatment,optional for black curly cord )
Mounting
Wall/column/structural
Captive cover screws prevent loss during installation
Weather Resistance
IP66-IP67
Ringing Tone
Built-in External Ringer that provides
penetrating calling signal(85dbA@1meter)
Hook switch
Electronic / magnetic with no visible moving parts
M.T.B.F.
Calculated to have an M.T.B.F. in excess of 50,000 hours using
Weight
Up to 9 kg depending on option
