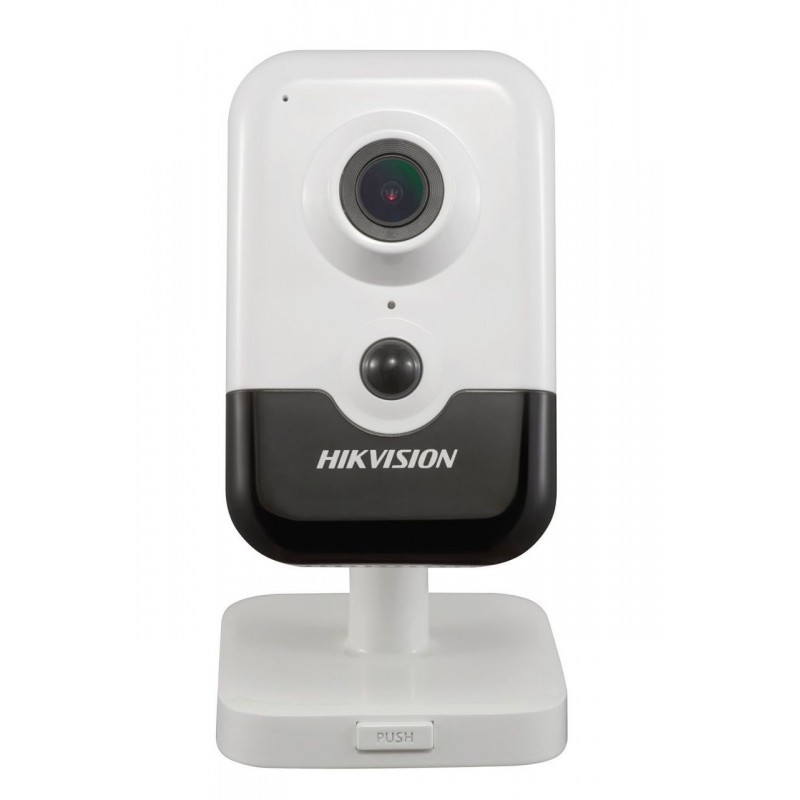

Hikvision DS-2CD2423G0 -IW Δικτυακή κάμερα IP  2.8mm 2MP IR 10m 98° με ήχο

2 MP IR Fixed Cube Network Camera



 • 1920 × ‍1080@30fps

 • IR: 10 m

 • PIR: 10m

 • H.265, H.265+

 •120dB WDR

 • Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

 • PoE

 • EXIR

 • Wi-Fi (Optional)



Camera
Image Sensor:		1/2.7” Progressive Scan CMOS
Signal System:		PAL/NTSC
Min. Illumination:		Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
Shutter time:		1/3 s to 1/100,000 s
Slow shutter:		Support
Lens:		2.8 mm: horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° 4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
Lens Mount:		M12
Adjustment Range:		Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night:		IR Cut Filter
Wide Dynamic Range:		120 dB
Digital noise reduction:		3D DNR
Focus:		Fixed

Compression Standard
Video Compression:		H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:		Main Profile/High Profile
Video bit rate:		256Kbps~16Mbps
Audio Compression:		G.711/G.722.1/G.726/MP2L2/PCM
Audio bit rate:		64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Triple Streams:		Yes

Max. Image Resolution:		1920 x 1080
Frame Rate:		50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:		50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:		50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Image Enhancement:		BLC/3D DNR/ROI/HLC
Image Settings:		Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROI:		Support 1 fixed region for main stream and sub-stream separately
Day/Night Switch:		Day/Night/Auto/Schedule

Network
Network Storage:		microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:		Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:		TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, IPv6
General Function:		One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy  mask, Watermark, IP address filtering
System Compatibility:		ONVIF (Profile S, Profile G), ISAPI

Interface
Audio:		1 built-in mic, 1 built-in speaker, mono sound
Communication Interface:		1 RJ45 10M / 100M Ethernet interface
On-board storage:		Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:		Yes

Audio
Environment Noise Filtering:		Support
Audio Sampling Rate:		8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Smart Feature-set
Behavior Analysis:		Line crossing detection, intrusion detection
Line Crossing Detection:		Cross a pre-defined virtual line
Intrusion Detection:		Enter and loiter in a pre-defined virtual region
Recognition:		Face Detection

Wi-Fi Specification (-W)
Wireless Standards:		IEEE802.11b, 802.11g, 802.11n
Frequency Range:		2.412 GHz to 2.4835 GHz
Channel Bandwidth:		20/40MHz Support
Security:		WPA, WPA2
Transmission Rate:		11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps
Wireless Range:		50m(depend on environment)
Protocols:		802.11b: DQPSK, DBPSK, CCK 802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK

General
Operating Conditions:		-10 °C – 40°C (14 °F – 104 °F), Humidity 95% or less (non-condensing)
Power Supply:		12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:		12 VDC, 0.5A, max. 6W, Φ 5.5 mm coaxial plug power PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7W
IR Range:		Up to 10m
PIR:		10m
Dimensions:		102.8 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
Weight:		Camera: Approx. 128 g (0.3 lb.)
