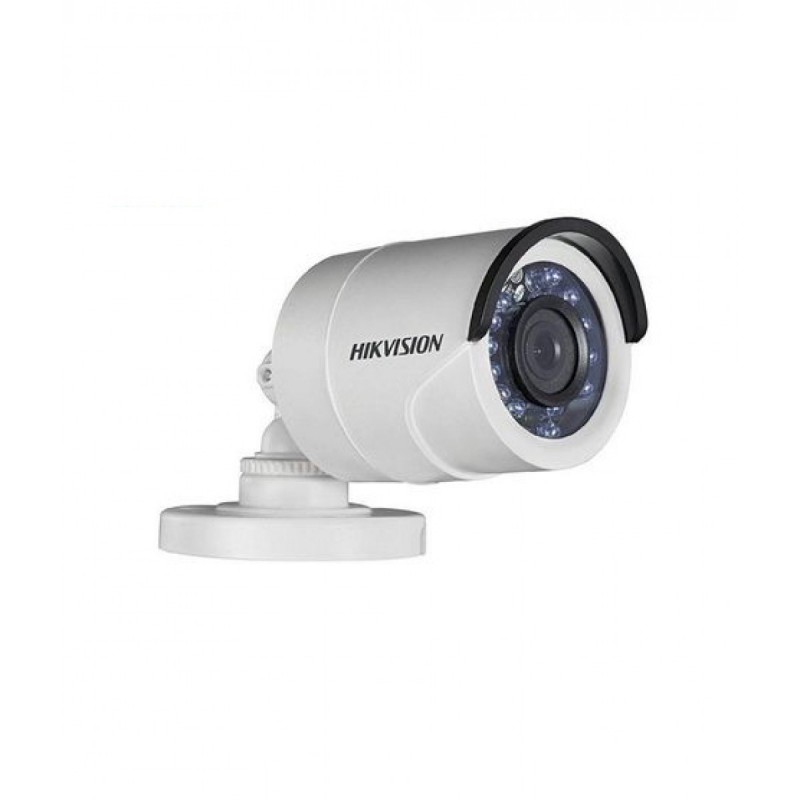

HIKVISION DS-2CE16C0T-IRPF Κάμερα Bullet 720P, 2.8mm, 20m, 92°



HD720P IR Bullet Camera



•    1.0 Megapixel high-performance CMOS

•    Analog HD output, up to 720P resolution

•    True Day/Night

•    DNR, Smart IR

•    Up to 20m IR distance

•    IP66 weatherproof

•    Switchable TVI/AHD/CVI/CVBS

•

---



Camera
Image Sensor:		1MP CMOS Image Sensor
Signal System:		PAL/NTSC
Effective Pixels:		1296(H)x732(V)
Min. Illumination:		0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens Mount:		M12
Adjustment Range:		Pan: 0 - 360°, Tilt: 0 - 180°, Rotation: 0 - 360°
Day& Night:		IR cut filter with auto switch
Video Frame Rate:		720p@25fps/720p@30fps
HD Video Output:		1 Analog HD output
Synchronization:		Internal Synchronization
S/N Ratio:		More than 62 dB

General
Operating Conditions:		-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC±15%
Weather Proof:		IP66
IR Range:		Up to 20m
Dimension:		Φ 70 mm × 154.5 mm ( 2.76" × 6.08")
Weight:		300 g





User Manual of DS-2CE16C0T-IRPF

Datasheet of DS-2CE16C0T-IRPF
