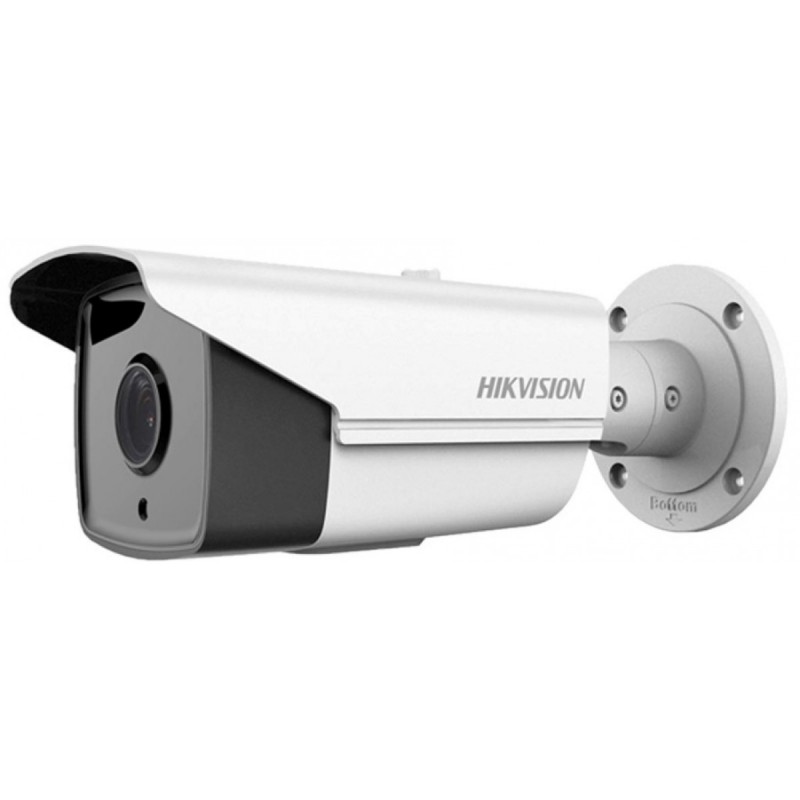

HIKVISION DS-2CE16C0T-IT3F Κάμερα Bullet 720P, 2.8mm, 40m, 92°



HD720P EXIR Bullet Camera





•    1 Megapixel high-performance CMOS

•    Analog HD output, up to 720P resolution

•    True Day/Night

•    DNR, Smart IR

•    EXIR technology, up to 20m/40m/80m IR distance

•    IP66 weatherproof

•    Switchable TVI/AHD/CVI/CVBS

•

---



Camera
Image Sensor:		1MP CMOS Image Sensor
Signal System:		PAL/NTSC
Effective Pixels:		1296(H)x732(V)
Min. Illumination:		0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens Mount:		M12
Adjustment Range:		Pan: 0°-360°; Tilt:0°-180°; Rotation: 0°-360°
Day& Night:		IR cut filter with auto switch
Video Frame Rate:		720p@25fps/720p@30fps
HD Video Output:		1 Analog HD output
Synchronization:		Internal Synchronization
S/N Ratio:		More than 62 dB

General
Operating Conditions:		-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC±15%
Weather Proof:		IP66
IR Range:		Up to 80m
Dimension:		86.7 mm × 81.6 mm × 226 mm(3.4" × 3.2" × 8.9")
Weight:		700 g
