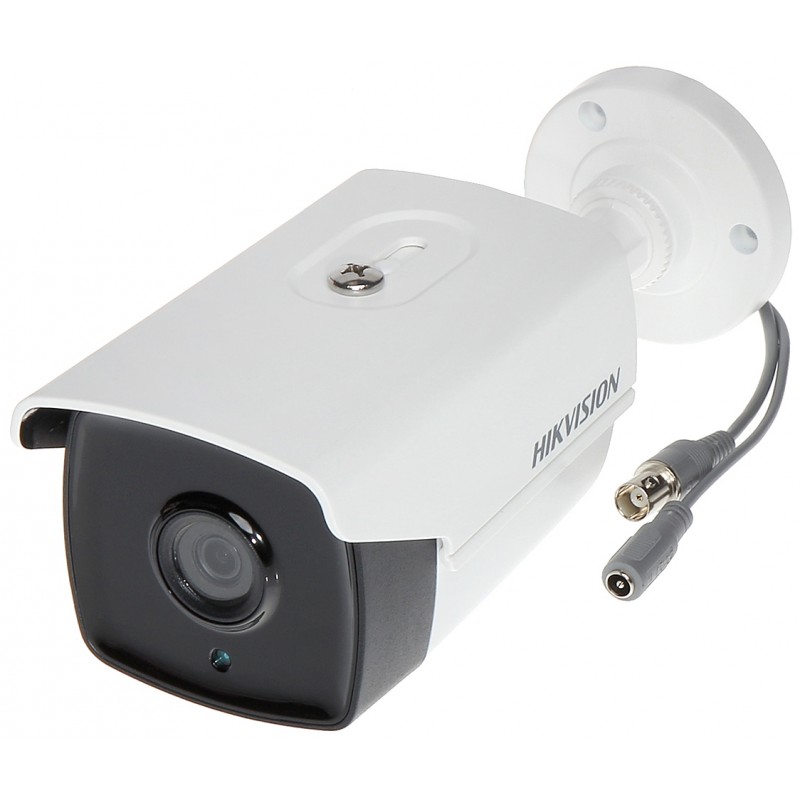

HIKVISION DS-2CE16D8T-IT3 Κάμερα Bullet 1080P ,2.8mm/ 3.6mm, 40m, 103.5° / 82.6°, 120dB

2 MP Ultra Low-Light EXIR Bullet Camera



•    2 Megapixel high-performance CMOS

•    Ultra-Low Light

•    1920 × 1080 resolution

•    2.8 mm, 3.6 mm, 6 mm, 8 mm fixed focal lens

•   120 dB true WDR, 3D DNR

•   EXIR 2.0, Smart IR, up to 20/40/80 m IR distance

•    IP67

•    Up the Coax(HIKVISION-C)

---



Camera
Image Sensor:		2MP CMOS Image Sensor
Signal System:		PAL/NTSC
Effective Pixels:		1920(H)*1080(V)
Min. Illumination:		Color: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens:		3.6 mm, 6 mm, 8 mm, 12 mm fixed focal lens
Lens Mount:		M12
Adjustment Range:		Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
Day& Night:		IR cut filter with auto switch
Wide Dynamic Range:		120dB
Video Frame Rate:		1080p@25fps/1080p@30fps
HD Video Output:		1 Analog HD output
Synchronization:		Internal Synchronization

Menu
D/N Mode:		Auto / Color / B/W
Auto White Balance:		Auto/MWB
BLC:		Support
AGC:		Support
Language:		English/Chinese
Function:		Brightness, Sharpness, Mirror, Smart IR

General
Operating Conditions:		-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC±25%
Power Consumption:		Max. 6 W
Weather Proof:		IP67
IR Range:		Up to 80m
Communication :		Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:		86.7mm×81.6mm×226mm (3.41″×3.23″×8.67″)
Weight:		Approx. 680g (1.5lb)
