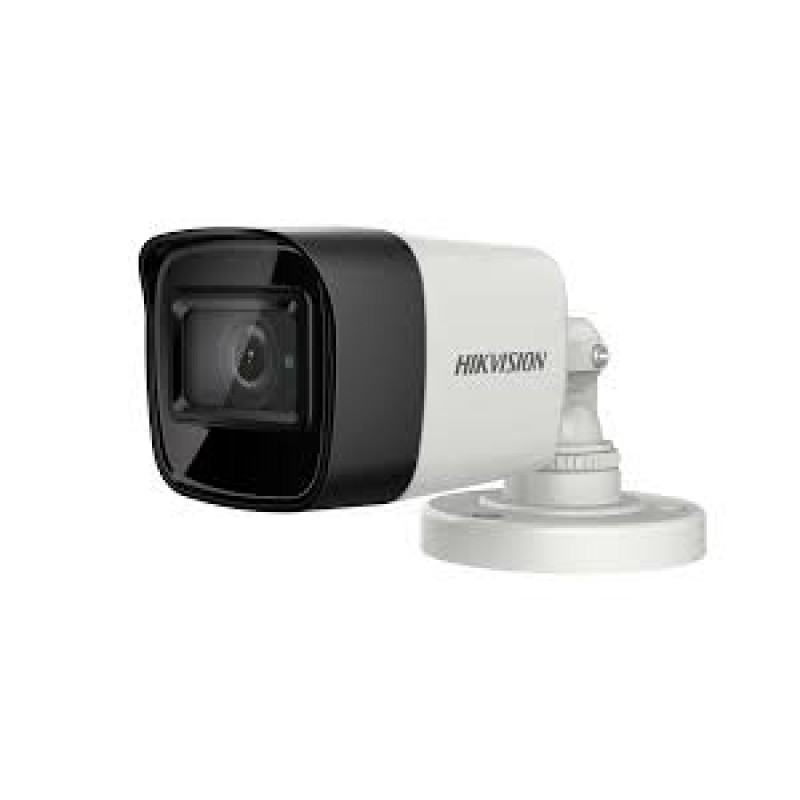

HIKVISION DS-2CE16H8T-ITF Κάμερα Bullet 5MP, 2.8mm, 30m, 98°, 130dB

5 MP Ultra-Low Light Camera



•    5 Megapixel high-performance CMOS

•    2560 × 1944 resolution

•    2.8 mm, 3.6 mm, 6 mm fixed lens

•    EXIR 2.0, smart IR, up to 30 m IR distance

•    OSD menu, 3D DNR, 130 dB true WDR

•    4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

•   IP67

•    Up the Coax(HIKVISION-C)

---





Camera
Image Sensor:		5 megapixel progressive scan CMOS
Signal System:		PAL/NTSC
Effective Pixels:		2560 (H) × 1944 (V)
Min. Illumination:		Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens:		2.8 mm, 3.6 mm, 6 mm fixed lens
Lens Mount:		M12
Adjustment Range:		Pan: 0° to 360°; Tilt:0° to 180°; Rotate: 0° to 360°
Day& Night:		IR cut filter
Video Frame Rate:		TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;CVI: 4 MP@25fps, 4 MP@30fps;CVBS: PAL, NTSC
Synchronization:		Internal Synchronization

Menu
3D DNR (Digital Noise Reduction):		Level 1 to 9
D/N Mode:		Auto/Color/BW (Black and White)
Auto White Balance:		Auto / Manual
BLC:		Support
AGC:		Support
Language:		English
Function:		Brightness, Sharpness, DNR, Mirror, Smart IR

Interface
Video Out:		1 HD analog output

General
Operating Conditions:		-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.
Weather Proof:		IP67
IR Range:		Up to 30m
Communication :		Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:		58 mm × 61 mm × 158.6 mm (2.28" × 2.40" × 6.42")
Weight:		Approx. 320 g (0.71 lb.)







Datasheet of DS-2CE16H8T-ITF
