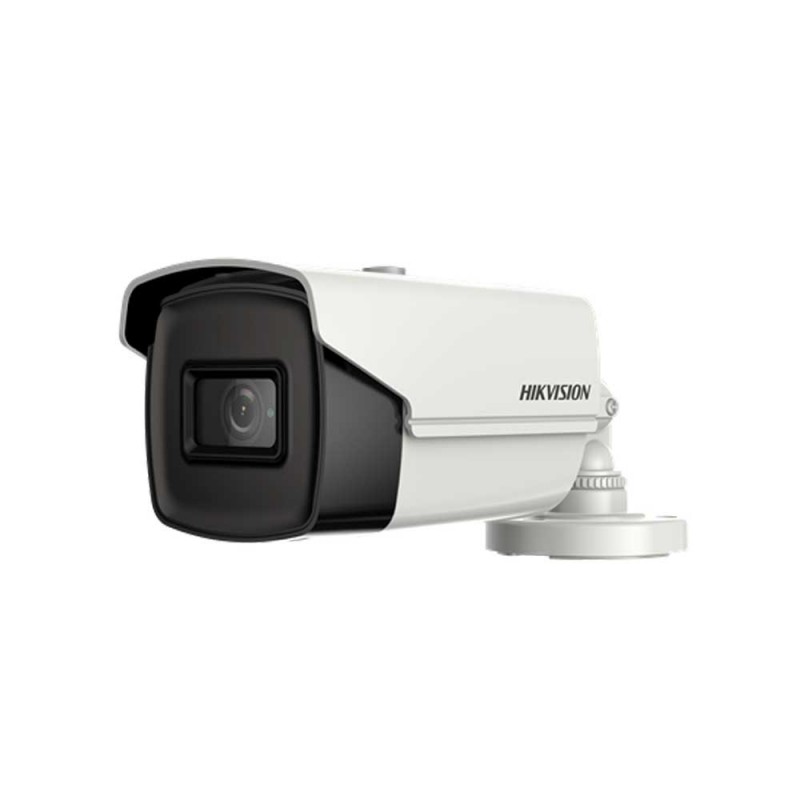

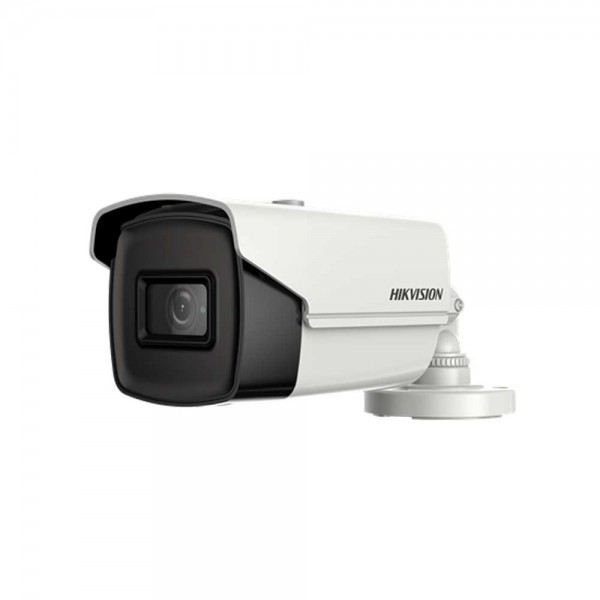

HIKVISION DS-2CE16U1T-IT3F Κάμερα Bullet 8MP, 2.8mm, 60m, 102.2°, 105dB DWDR

8 MP Bullet Camera



•    8.29 Megapixel high-performance CMOS

•    3840 × 2160 resolution

•    2.8 mm, 3.6 mm, 6 mm 8mm 12mm fixed focal lens

•    4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

•    EXIR 2.0, smart IR, up to 60m IR distance

•    IP67

•    Up the Coax(HIKVISION-C)

---





Camera
Image Sensor:		8.29 MP high performance CMOS
Signal System:		PAL/NTSC
Effective Pixels:		3840 (H) × 2160 (V)
Min. Illumination:		0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time:		PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
Lens:		2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
Lens Mount:		M16
Adjustment Range:		Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
Day& Night:		IR cut filter
Video Frame Rate:		TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,2MP@30fps;CVI: 8MP@12.5fps, 8MP@15fps;AHD: 5MP@20fps;CVBS: 960H P/N
Synchronization:		Internal Synchronization

Lens
Horizontal Field of View:		102.2°(2.8 mm), 79° (3.6 mm), 50.8° (6 mm), 37.73°(8 mm), 23.96°(12 mm)

Menu
BLC:		Support
AGC:		Support
Language:		English
Function:		Brightness, Sharpness, DNR, Mirror, Smart IR

Interface
Video Out:		1 HD analog output

General
Operating Conditions:		-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.
Power Consumption:		Max. 5.3 W
IR Range:		Up to 60m
Communication :		Up the coax Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)
Dimension:		81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" )
Weight:		Approx. 435 g (0.96 lb.)







Datasheet of DS-2CE16U1T-IT3F
