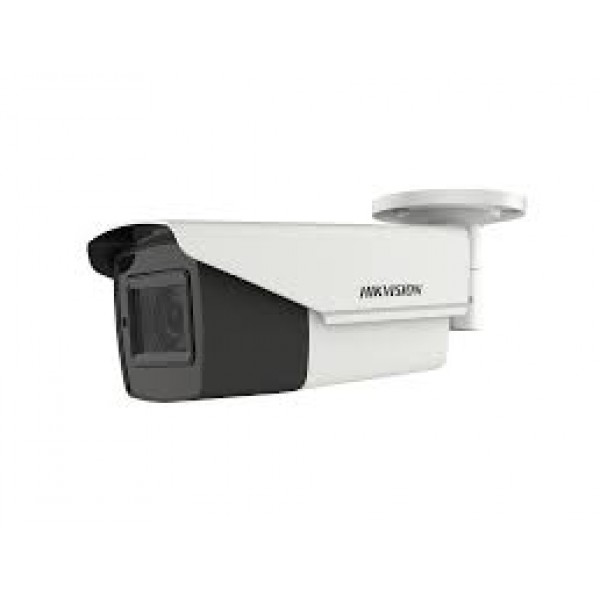

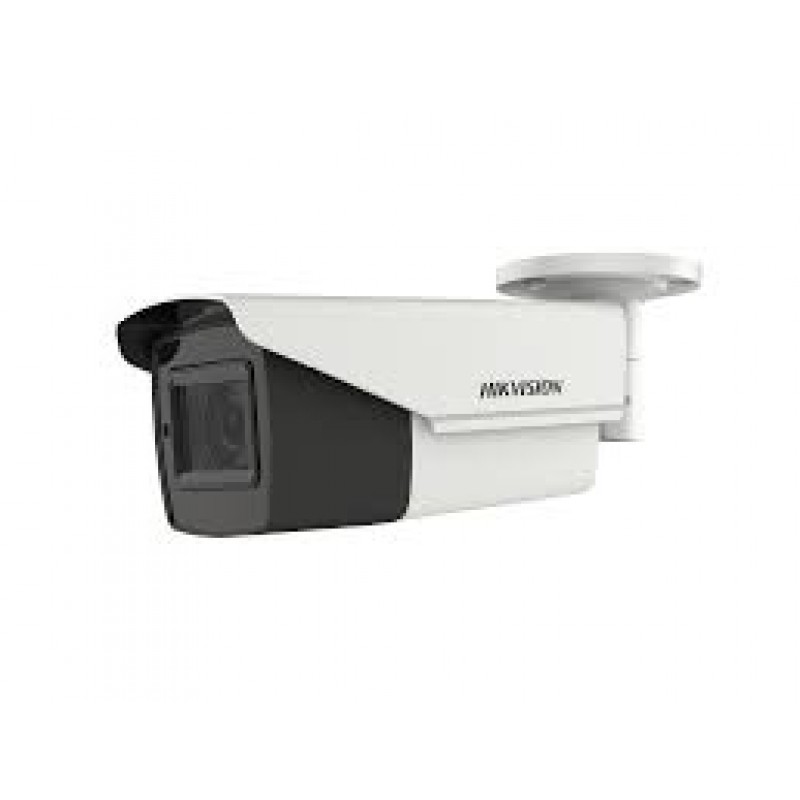

HIKVISION DS-2CE19U1T-IT3ZF Κάμερα Bullet 8MP, 2.7-13.5mm auto focus, 80m, 45.6°-108.1°, 105dB DWDR

8 MP Bullet Camera



•    8.29 Megapixel high-performance CMOS

•    Auto focus

•    3840 × 2160 resolution

•   2.7 mm to 13.5 mm motorized vari-focal lens

•    EXIR 2.0, smart IR, up to 80m IR distance

•   OSD menu, DNR

•   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

•    IP67

•    Up the Coax(HIKVISION-C)

---





Camera
Image Sensor:		8.29 MP high performance CMOS
Effective Pixels:		3840 (H) × 2160 (V)
Shutter Time:		PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
Lens Mount:		φ14
Adjustment Range:		Pan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
Day& Night:		IR cut filter
Video Frame Rate:		TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,2MP@30fps;CVI: 8MP@12.5fps, 8MP@15fps;AHD: 5MP@20fps;CVBS: 960H P/N
HD Video Output:		1 Analog HD output
Synchronization:		Internal Synchronization

Menu
D/N Mode:		Auto / Color / B/W
Auto White Balance:		Auto / Manual
BLC:		Support
AGC:		Support
Language:		English

General
Operating Conditions:		-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		9 VDC to 15 VDC(-A: 9.6 VDC to 14.4 VDC; 19.2 VAC to 28.8 VAC)*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption:		Max. 8.6 W (-A: Max. 10.8 W)
Weather Proof:		IP67
IR Range:		Up to 80m
Communication :		Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:		84.5 mm × 92 mm × 255.1 mm (3.33" × 3.62" × 10")
Weight:		Approx. 695 g (1.53 lb.)







Datasheet of DS-2CE19U1T-(A)IT3ZF
