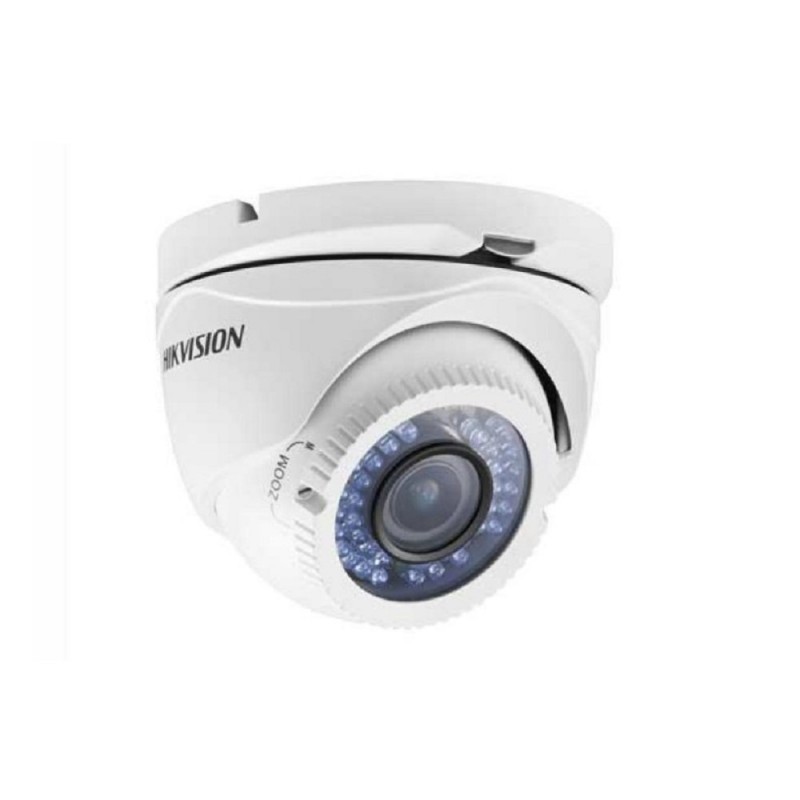

HIKVISION DS-2CE56C0T-VFIR3F Κάμερα Dome 720P, 2.8 - 12mm, IR 40m, 71.8°- 23.4 °

1. 1 megapixel high performance CMOS
2. Analog HD output, up to 720p resolution
3. Day/Night switch
4. Smart IR Up to 40 m
5. IR distance Switchable TVI/AHD/CVI/CVBS
6. IP66



---





Camera
Angle Adjustment:		Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Image Sensor:		1MP CMOS Image Sensor
Signal System:		PAL/NTSC
Effective Pixels:		1296(H)x732(V)
Min. Illumination:		0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens:		2.8 - 12 mm @ F1.4
Lens Mount:		φ14
Day& Night:		IR cut filter with auto switch
Video Frame Rate:		720p@25fps/720p@30fps
HD Video Output:		1 Analog HD output
Synchronization:		Internal Synchronization
S/N Ratio:		More than 62 dB

General
Operating Conditions:		-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC±15%
Power Consumption:		Max. 4 W
IR Range:		Up to 40m
Dimension:		Φ130.54 × 102.4mm (Φ5.1” × 4”)
Weight:		Approx. 710g

---





Datasheet of DS-2CE56C0T-VFIR3F
