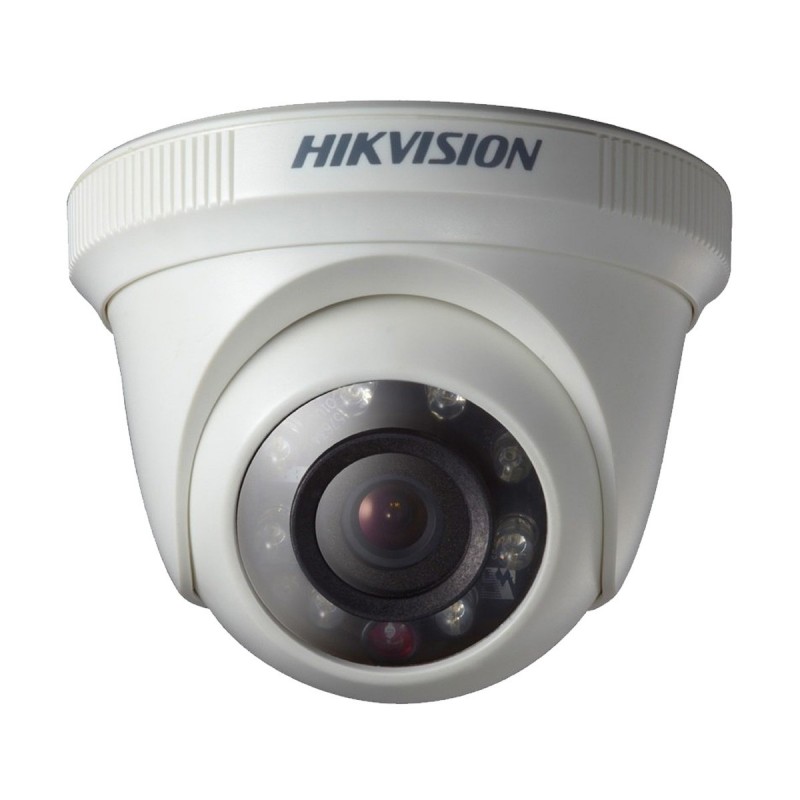

HIKVISION DS-2CE56D0T-IRF Κάμερα Dome 1080P, 2.8mm, IR 20m,103°

HD1080P Outdoor IR Turret Camera



·         2.0 Megapixel high-performance CMOS

·         Analog HD output, up to 1080P resolution

·         True Day/Night

·         Smart IR

·         Up to 20m IR distance

·         IP66 weatherproof

 ·       Switchable TVI/AHD/CVI/CVBS



---





Camera
Image Sensor:		2MP CMOS Image Sensor
Signal System:		PAL/NTSC
Effective Pixels:		1920(H)*1080(V)
Min. Illumination:		0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens:		2.8mm, 3.6mm, 6mm optional
Lens Mount:		M12
Adjustment Range:		Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day& Night:		IR cut filter with auto switch
Video Frame Rate:		1080p@25fps/1080p@30fps
HD Video Output:		1 Analog HD output
Synchronization:		Internal Synchronization
S/N Ratio:		More than 62 dB

General
Operating Conditions:		-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC±15%
Power Consumption:		Max. 4W
Weather Proof:		IP66
IR Range:		Up to 20m
Dimension:		Φ 89.9 × 70.1 mm (3.54" × 2.76")
Weight:		280 g (0.62 lb.)

---





User Manual of DS-2CE56D0T-IRF

Datasheet of DS-2CE56D0T-IRF
