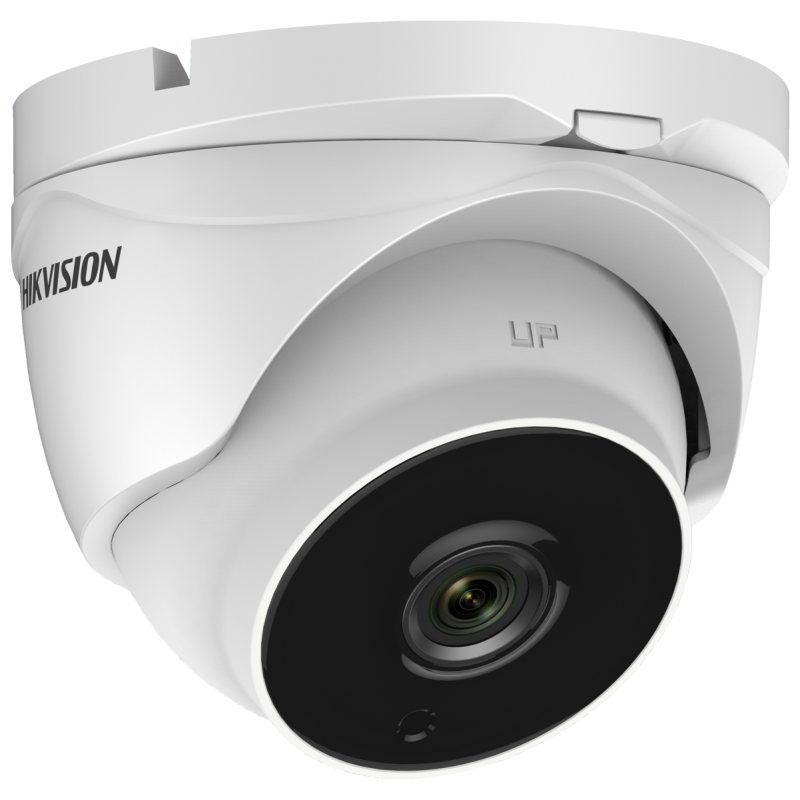

HIKVISION DS-2CE56D8T-IT3Z Κάμερα Dome 1080P, 2.8-12mm /auto focus, IR 40m, 32.1°-103°, 120dB

2 MP Ultra Low-Light VF EXIR Turret Camera



•    2 Megapixel high-performance CMOS

•    Ultra-Low Light

•   1920 × 1080 resolution

•    Auto focus, 2.8 mm to 12 mm motorized vari-focal lens

•    120 dB true WDR, 3D DNR

•    EXIR 2.0, Smart IR, up to 40 m IR distance

•    IP67

•    Up the Coax(HIKVISION-C)





---



Camera
Image Sensor:		2MP CMOS Image Sensor
Signal System:		PAL/NTSC
Effective Pixels:		1920(H)*1080(V)
Min. Illumination:		Color: 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens:		2.8 mm to 12 mm motorized vari-focal lens
Lens Mount:		φ14
Adjustment Range:		Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360°
Day& Night:		IR cut filter with auto switch
Wide Dynamic Range:		120dB
Video Frame Rate:		1080p@25fps/1080p@30fps
HD Video Output:		1 Analog HD output
Synchronization:		Internal Synchronization
Up the Coax:		Support

Menu
Auto White Balance:		Auto/MWB
BLC:		Support
AGC:		Support
Language:		English/Chinese
Function:		Brightness, Sharpness, Mirror, Smart IR

General
Operating Conditions:		-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC±25% -A: 12 VDC±25%, 24 VDC±25%
Power Consumption:		Max. 8W
Weather Proof:		IP67
IR Range:		Up to 40m
Communication :		Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:		134.3mm×123.9mm×111.4mm (5.29”×4.88”×4.39”)
Weight:		Approx. 750g (1.57lb)

---
