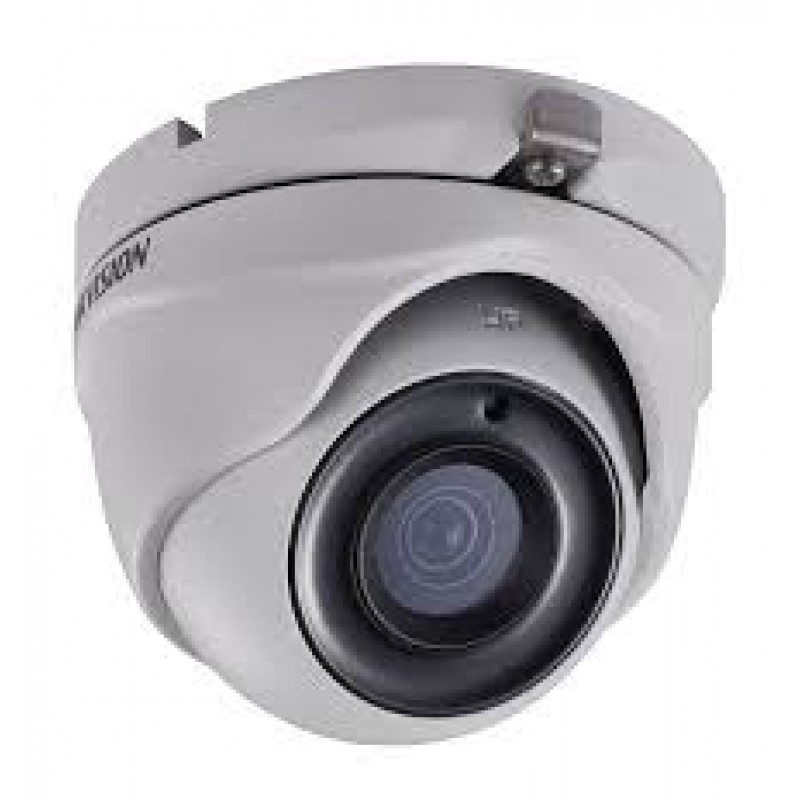

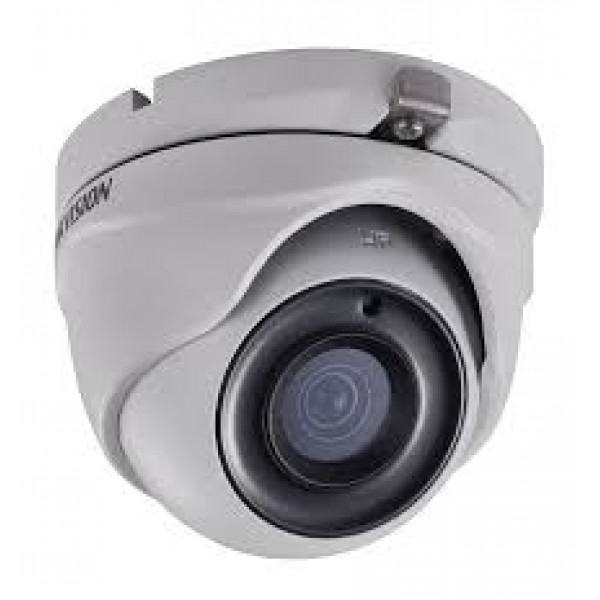

HIKVISION DS-2CE56H0T-ITMF Κάμερα Dome 5MP, 2.8mm, 20m, 85.5°

5 MP Turret Camera



•    5 Megapixel high-performance CMOS

•    Analog HD output, up to 5MP resolution

•    True Day/Night

•    OSD menu, 2D DNR, DWDR

•    EXIR technology, up to 20m IR distance

•    IP67 weatherproof

•    4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

•    Up the Coax(HIKVISION-C)

---



Camera
Image Sensor:		5MP CMOS Image Sensor
Effective Pixels:		2560 (H) × 1944 (V)
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens Mount:		M12
Adjustment Range:		Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Day& Night:		IR cut filter with auto switch
Video Frame Rate:		2560 × 1944 @ 20fps
HD Video Output:		1 Analog HD output
Synchronization:		Internal/Power synchronization

Menu
D/N Mode:		Auto / Color / B/W
Auto White Balance:		Auto/MWB
BLC:		Support
AGC:		Support
Language:		English

General
Operating Conditions:		-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC±25%
Weather Proof:		IP67
IR Range:		Up to 20m
Communication :		Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:		91 mm × 82.6 mm × 68.3 mm (3.58" × 3.25" × 2.69")
Weight:		Approx. 350 g (0.77 lb)

---
