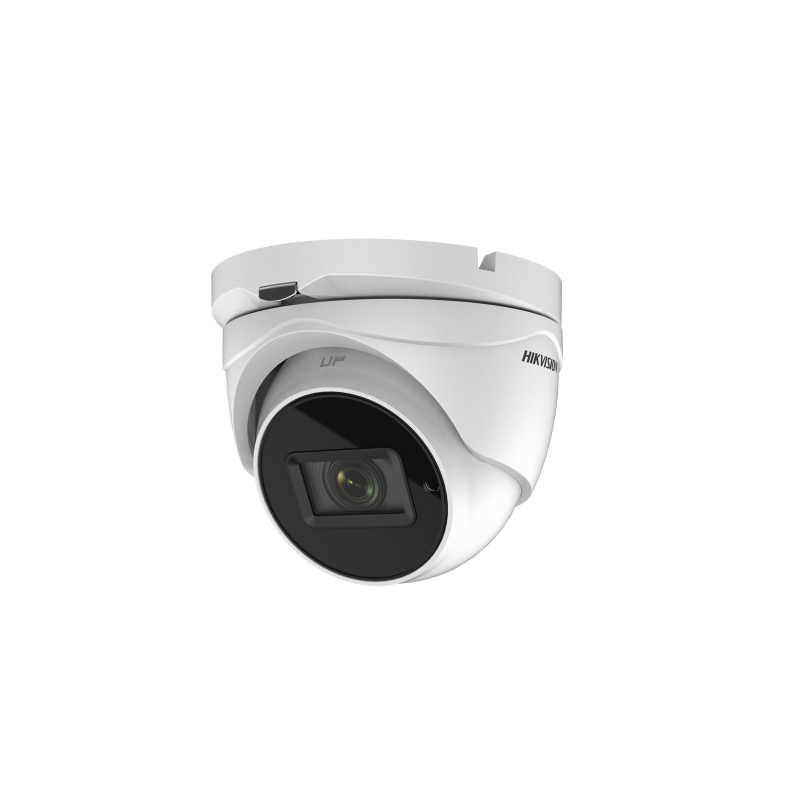

HIKVISION DS-2CE76U1T-ITMF Κάμερα Dome 8MP, 2.8mm, 30m, 102.2°, 105dB /DWDR



8 MP Turret Camera



•    8.29 Megapixel high-performance CMOS

•    3840 × 2160 resolution

•    2.8mm  3.6 mm, 6 mm  fixed  lens

•   4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

•    EXIR 2.0, smart IR, up to 30m IR distance

•    IP67

•    Up the Coax(HIKVISION-C)



---



Camera
Image Sensor:		8.29 MP high performance CMOS
Signal System:		PAL/NTSC
Effective Pixels:		3840 (H) × 2160 (V)
Min. Illumination:		0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time:		PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
Lens:		2.8 mm, 3.6 mm, 6 mm fixed lens
Lens Mount:		M16
Adjustment Range:		Pan: 0° to 360°, Tilt:0° to 180°, Rotate: 0° to 360°
Day& Night:		IR cut filter
Video Frame Rate:		TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,2MP@30fps;CVI: 8MP@12.5fps, 8MP@15fps;AHD: 5MP@20fps;CVBS: 960H P/N
Synchronization:		Internal Synchronization

Lens
Horizontal Field of View:		102.2°(2.8 mm), 79° (3.6 mm), 50.8° (6 mm)

Menu
D/N Mode:		Auto/Color/BW (Black and White)
BLC:		Support
AGC:		Support
Language:		English
Function:		Brightness, Sharpness, DNR, Mirror, Smart IR

Interface
Video Out:		1 HD analog output

General
Material:		Metal
Operating Conditions:		-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.
Power Consumption:		Max. 5.3 W
IR Range:		Up to 30m
Communication :		Up the coax Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)
Dimension:		90 mm × 79.37 mm (3.54" × 3.12" )
Weight:		Approx. 310 g (0.68 lb.)





Datasheet of DS-2CE76U1T-ITMF
