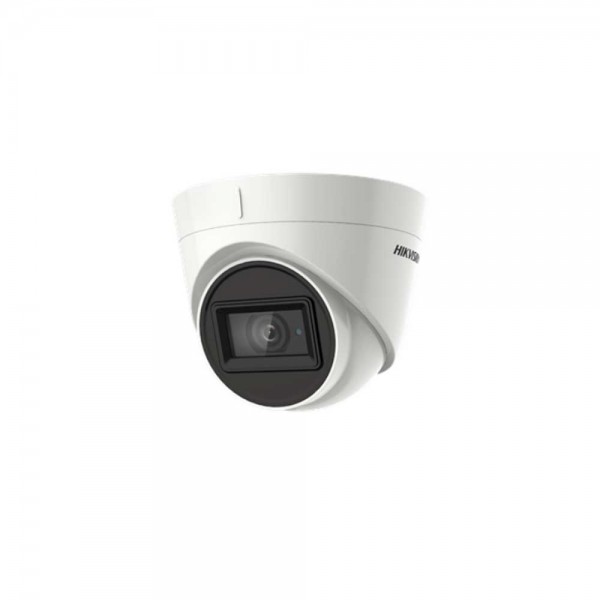

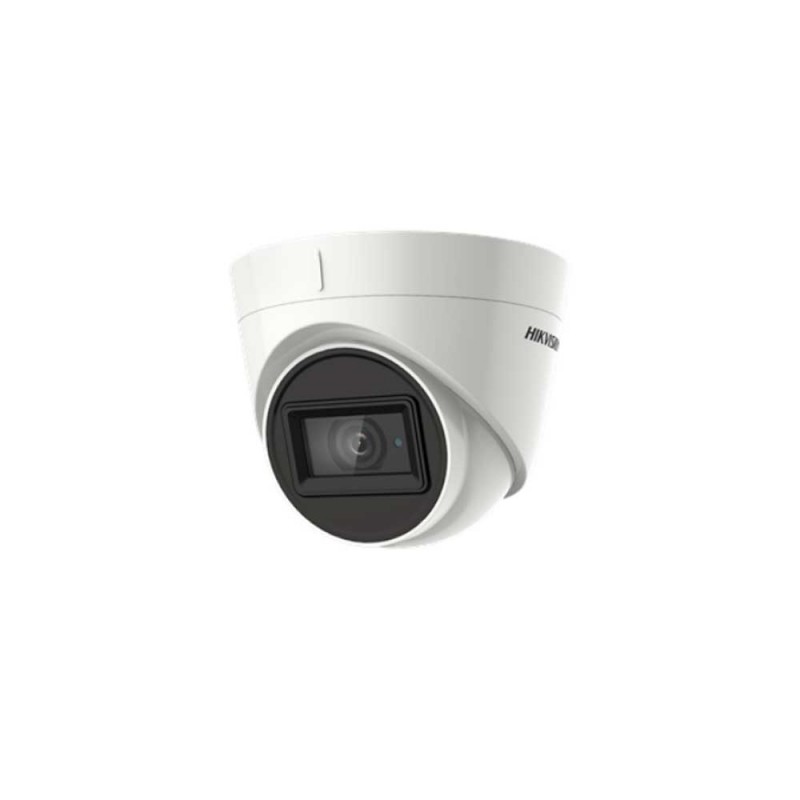

HIKVISION DS-2CE78D3T-IT3F Κάμερα Dome 1080P, 2.8mm, IR 50m, 106.2°, 120dB

2 MP high performance

COMS Ultra low light

1920 × 1080 resolution

2.8 mm, 3.6 mm, 6 mm ,8mm,12mm fixed lens

EXIR 2.0, smart IR, up to 50 m IR distance

4 in 1 video output (switchable TVI/AHD/CVI/CVBS)

OSD menu, 3D DNR, 120 dB true WDR,

day/night switch

IP67

Up the coax (HIKVISION-C)

---



Camera
Image Sensor:		2.0 megapixel progressive scan CMOS
Signal System:		PAL/NTSC
Effective Pixels:		1920 (H) × 1080 (V)
Min. Illumination:		Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens:		2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
Lens Mount:		M12
Adjustment Range:		Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Day& Night:		IR cut filter
Video Frame Rate:		PAL: 1080p@25fps NTSC: 1080p@30fps
HD Video Output:		1 Analog HD output
Synchronization:		Internal Synchronization
BLC:		Support
Up the Coax:		Support

Menu
3D DNR (Digital Noise Reduction):		Level 1 to 9
D/N Mode:		Auto/Color/BW (Black and White)
BLC:		Support
AGC:		Low/middle/high
Language:		English
Function:		Brightness, Sharpness, DNR, Mirror, Smart IR

Interface
Video Out:		1 HD analog output

General
Material:		Enclosure: Plastic Main body: Metal
Operating Conditions:		-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.
Power Consumption:		Max. 4.6 W
Weather Proof:		IP67
IR Range:		Up to 50m
Dimension:		Ø 109.82 mm × 91.03 mm (Ø 4.32" × 3.6")
Weight:		Approx. 302 g (0.67 lb.)

---



Datasheet of DS-2CE78D3T-IT3F
