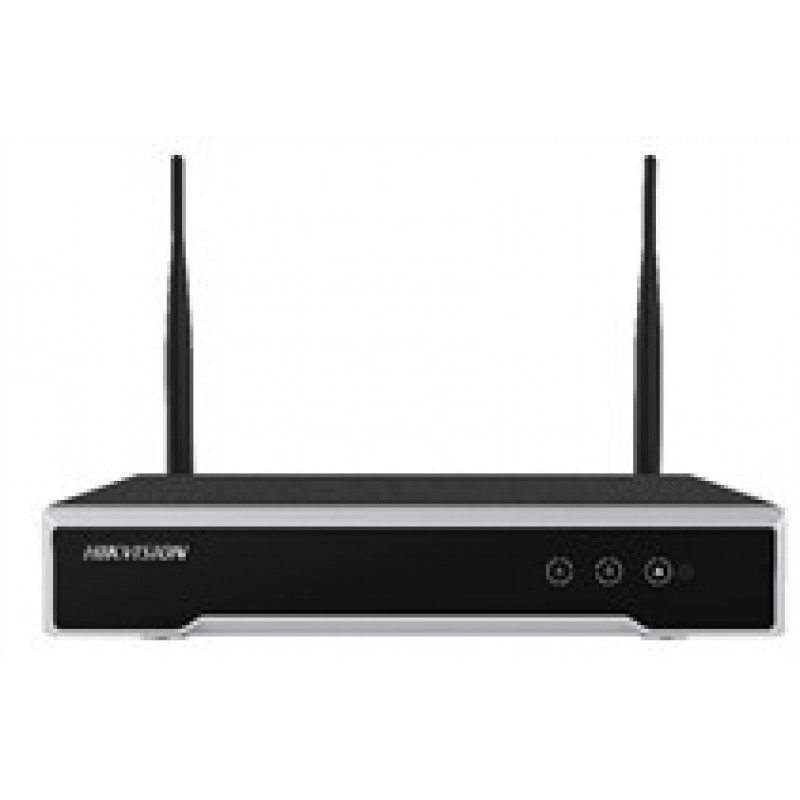

Hikvision DS-7104NI-K1/W/M Κάταγραφικο 4 καμερών εως 4MP
• Provides Wi-Fi function
• Up to 16 terminals, including mobile phone and laptop, can access NVR via Wi-Fi
• HDMI and VGA output at up to 1920×1080P resolution
• Hik——Connect for easy network management
| Video/Audio Input | ||
|---|---|---|
| Two-way audio input: | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
| IP video input: | 8-ch | |
| Audio Input: | 1-ch, RCA (2.0Vp-p, 1kΩ) | |
| Network | ||
|---|---|---|
| Incoming bandwidth: | 50Mbps | |
| Outgoing bandwidth: | 40Mbps | |
| Video/Audio Output | ||
|---|---|---|
| HDMI/VGA output: | 1-ch, resolution: 1920 × 1080P /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz, 1024 × 768 /60Hz | |
| Audio Output: | 1-ch, RCA (Linear, 1kΩ) | |
| Decoding | ||
|---|---|---|
| Capability: | 1-ch @ 4 MP / 2-ch @ 1080p | |
| Hard Disk | ||
|---|---|---|
| Interface Type: | 1 SATA interface | |
| SATA: | 1 SATA interface for 1 HDD | |
| Capacity: | Up to 6TB capacity for each HDD | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1 RJ-45 10 / 100 Mbps selfadaptive Ethernet interface | |
| USB Interface: | 2, USB2.0 | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Consumption(without hard disk and POE): | ≤ 12 W | |
| Working Temperature: | -10 oC ~ +55 oC (+14 oF~ + 131 oF) | |
| Working Humidity: | 10 % ~ 90 % | |
| Dimensions: | 260 × 246 × 48 mm (10.2" × 9.7" × 1.9") | |
| Weight(without HDD): | ≤ 1 kg (2.2 lb) | |
