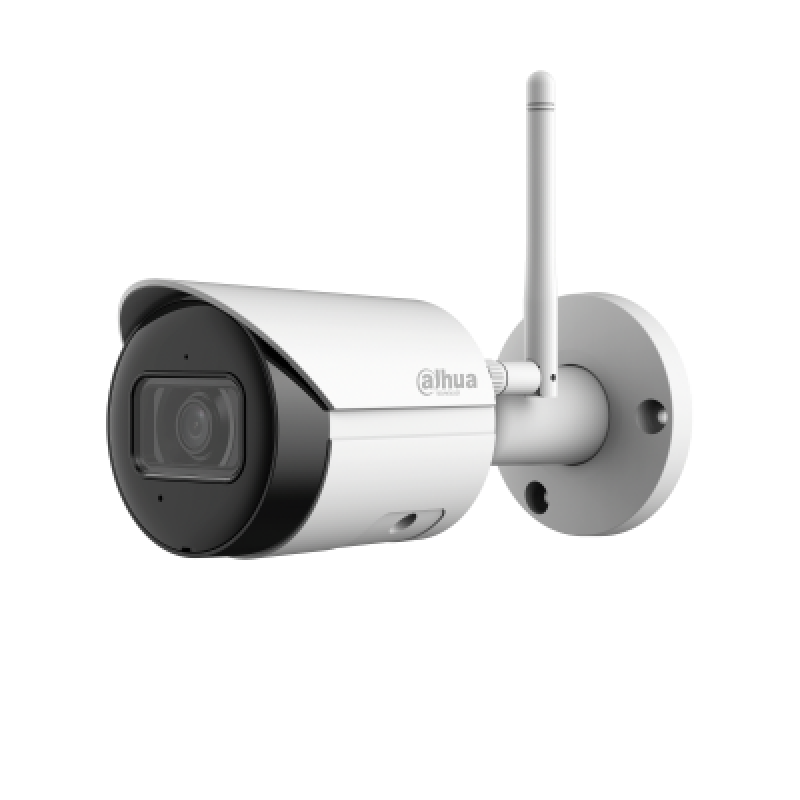

Dahua IPC-HFW1230DS-SAW-0280B 2MP

2.8 IR Fixed Focal Wi-Fi Bullet IP Camera

Features:
• 2-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.
• Outputs max. 2 MP (1920 x 1080) @25/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in IR LED.
• SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
• DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
• Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human).
• Supports antenna 2.4G Wi-Fi, up to 80m range in open area.
• Supports max. 256 G Micro SD card.Built-in MIC .
• 12 VDC power supply.
• IP67 protection.

Sensor	1/2.8" CMOS
Max. Image Resolution	1920 x 1080
Minimum Illumination	0.025 lux@F2.0 (Color, 30 IRE) 0.0025 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Lens	2.8mm
Microphone	Built-in
Day& Night	Auto (ICR)/Color/B/W
Wide Dynamic Range	DWDR
Video Compression	H.264B; H.264; H.264H; H.265
Video bit Rate	H264: 24 kbps–4096 kbps H265: 9 kbps–4096 kbps
Ingress Protection IP	IP67
Frame Rate	Main stream: 1920 ? 1080 (1–25/30 fps) Sub stream: 640 ? 480@(1–25 fps) 640 ? 480@(1–30 fps)
Network Protocols	IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP
Working Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Power Consumption	Basic: 2 W (12 VDC) Max. (H.265+IR intensity): 4.1 W (12 VDC)
Dimensions (W x D x H)	166.2 mm x 70.0 mm x 128.6 mm (6.53" x 2.76" x 5.06")
Weight	477.9 g (1.05 lb)
Horizontal Resolution	1920
S/N Ratio	>56 dB
Recognition	Face Detection
Power Supply	12 VDC
Bracket 1	PFA152-E Pole Mount
