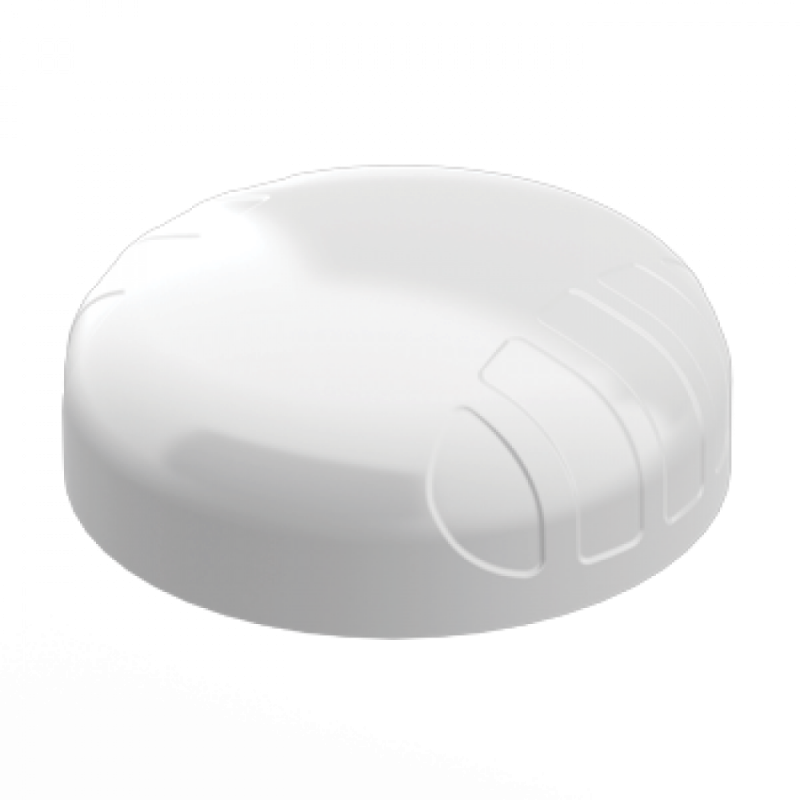

A-PUCK-0002-V1-01-W
617 - 4200MHz 2X2 LTE (MIMO), 6dBi
Poynting Antennas. Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The PUCK-2 consists of a 2-in-1 antenna system within a single housing, featuring 2x2 MIMO LTE antennas (for 2G/3G/4G) that cover the 617 to 4200 MHz band which includes the most popular international LTE bands. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/devi ce to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.
2-IN-1 TRANSPORTATION & IOT/M2M ANTENNA
617 - 4200 MHz; 2X2 LTE (MIMO), 6dBi
- 2-in-1 LTE high performance multi frequency
- 2G/3G/4G/LTE/5G antenna
- LTE/5G (2x2 MIMO)
- Wideband – covers wide frequency band, incl. 3.5 GHz CBRS band
- Ground plane independent
- Robust, vandal resistant and waterproof (IP 69K)
- Ideal for transportation, marine and IoT/M2M use
- Ultra-versatile mounting options for easy installation
- Radome Colour White
Radome Material UV Stable ASA
Product Order Code (SKU): A-PUCK-0002-V1-01-W
